AtoMik® is a compact, configurable test system made up of swappable instruments, a shared backplane, and intuitive control software. Designed to fit any stage of the product lifecycle, from R&D to production, AtoMik® helps your team move faster.
Features and Benefits
Modular architecture
Design a test environment that adapts to your product - not the other way around. AtoMik® modules connect seamlessly, so you can scale functionality without starting from scratch or overhauling your setup.
Test faster, iterate smarter
Unbox, plug in, and start testing sooner. AtoMik® dramatically shortens setup times so your team can shift focus from configuring complex tools to refining the final product. It’s test-ready when you are.
Sustainable efficiency
Achieve more with less. Each test consumes less energy, uses fewer
fixtures, and leaves a smaller footprint - delivering measurable impact without compromising performance.
Compact footprint
Forget refrigerator-sized rigs and sprawling test stations. AtoMik® delivers precision results in a space-saving form factor, making high-performance testing accessible in any environment.

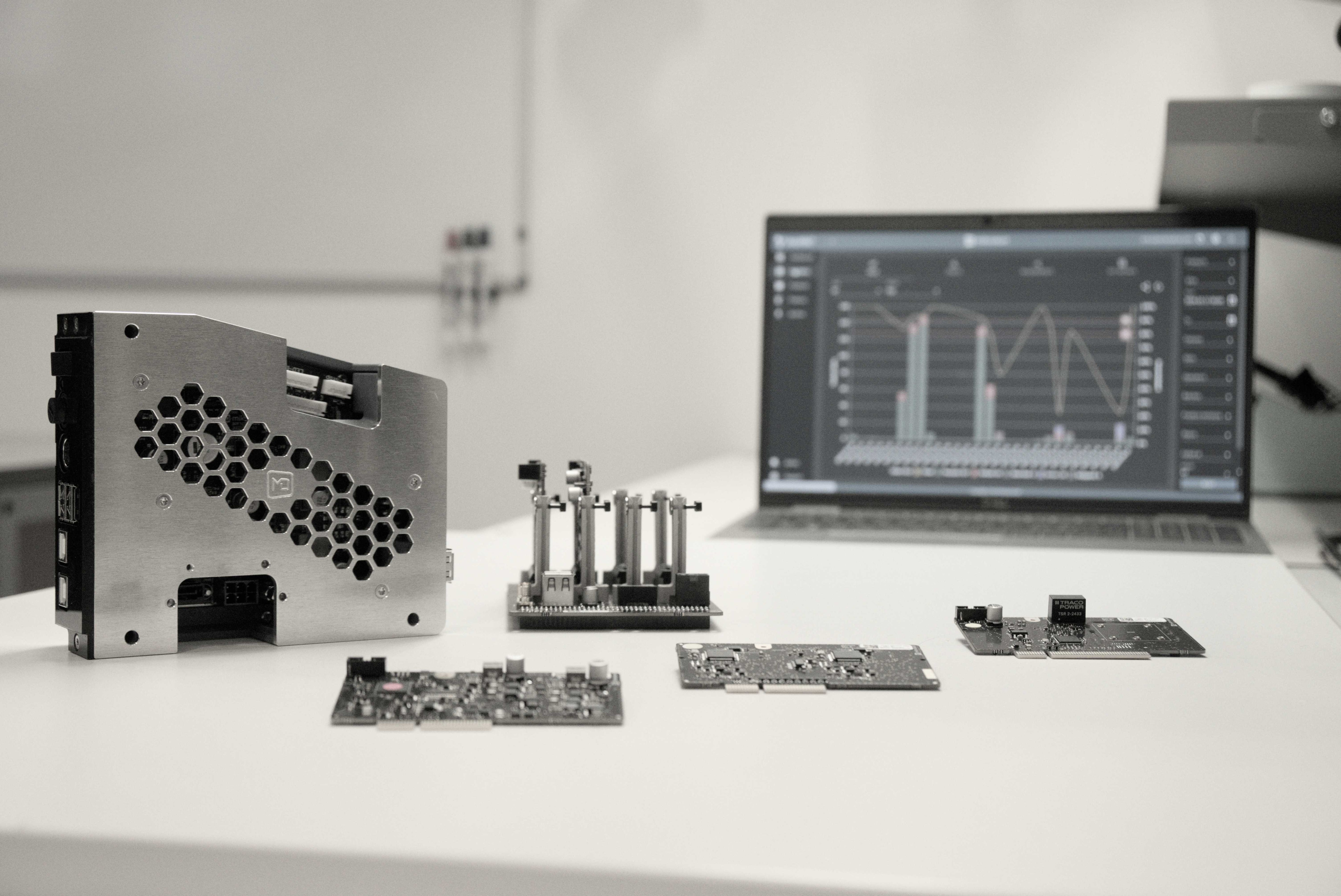

One System, Endless Possibilities
At the core of AtoMiK® is a backplane and interface module, into which you plug precision instruments tailored to your needs - DAQ, SMU, PRG, and more. Everything connects seamlessly through the developer tools, so your setup is both scalable and streamlined.
Accessories & Instruments

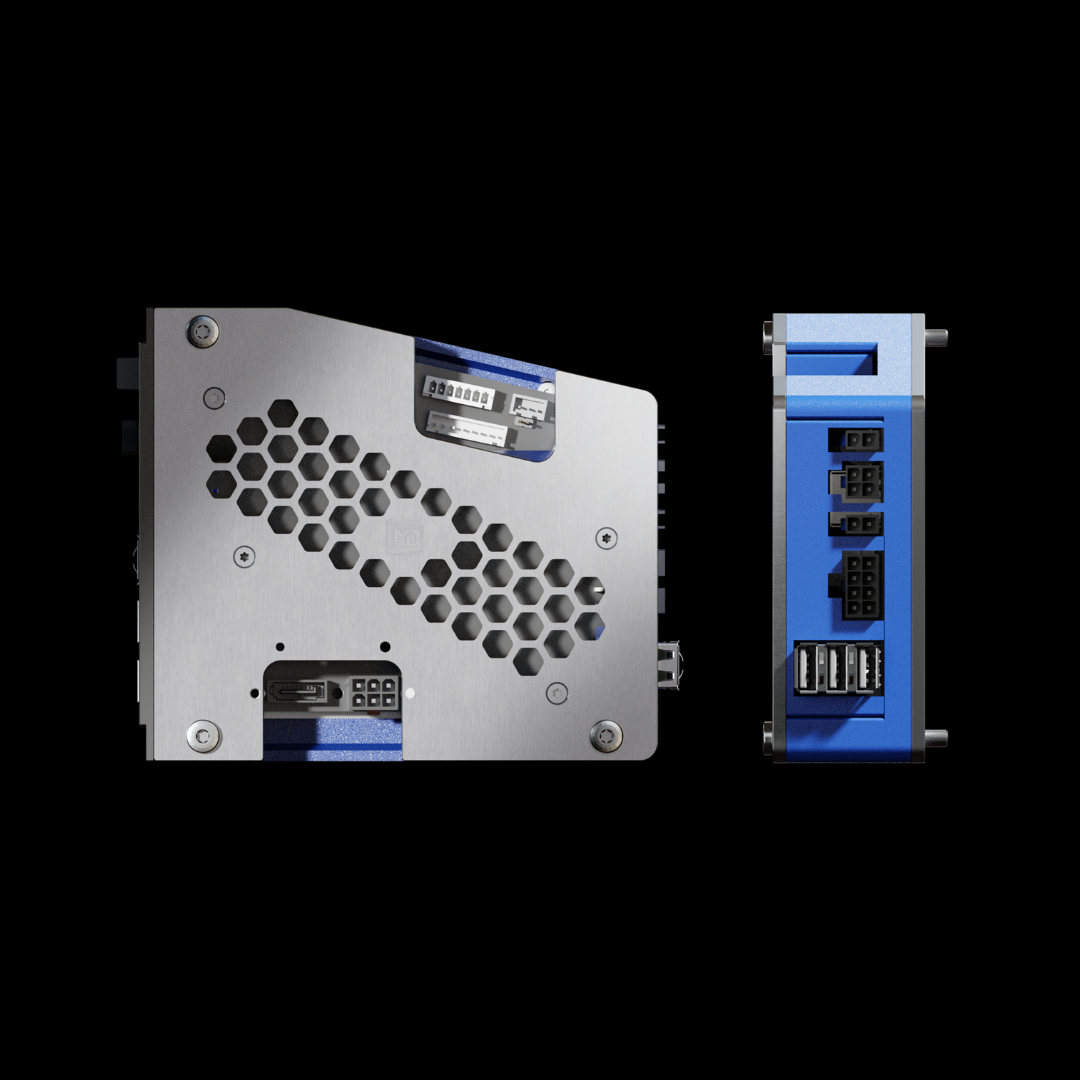

Interface Module
The Interface Module supplies regulated +24V and +5V power to AtoMik® instruments and auxiliary devices. It handles host communication via dual USB 2.0 ports, features a built-in USB hub with an RTOS-powered MCU, and supports external I/O including E-stop, RGB LED buttons, and displays.
KEY FEATURES
+24V/+5V Power Instruments
x1 USB Control instruments
x6 USB Expansion devices
RGB LED Button control
Display Expansion
Emergency Stop
x4 open drain outputs
+24V/+5V Auxiliary expansion
Powered by single +24V/5A

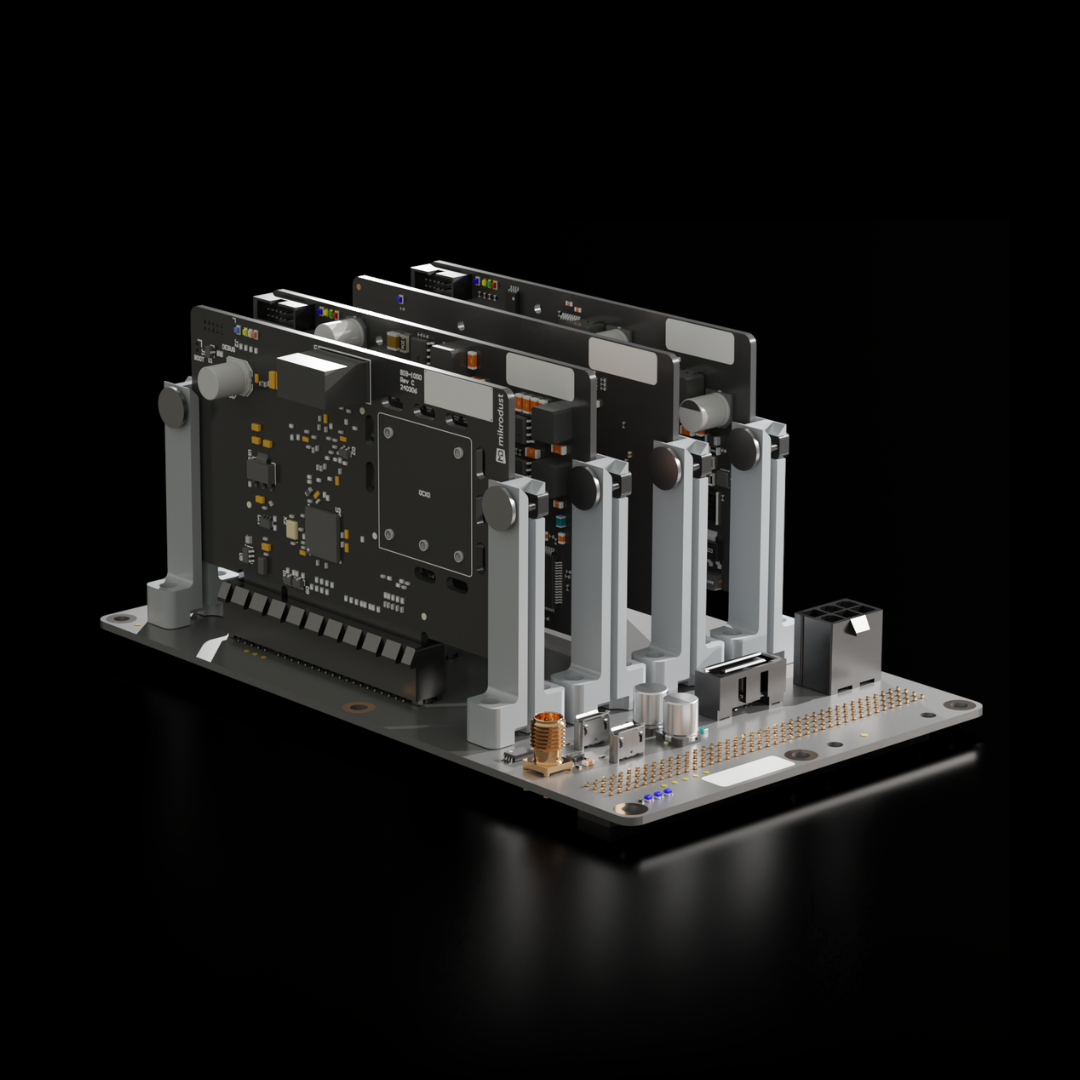

Backplane
This Backplane x4 populated with an AtoMik® BAS Instrument, up to three AtoMik® Instruments and together with USB 2.0 and power connection from an AtoMik® Interface Module creates a full featured, powerful and compact test and measurement system.
Different types of expansion such as two USB 2.0 channels and I2C/SPI interface is possible by utilizing the built-in expansion origin from an inserted AtoMik® BAS Instrument.
The offered 160 pin 2.0mm pitch connector test interface can easily be routed to targets in context of test fixtures, production test and R&D and product development.
KEY FEATURES
x1 Slot for an AtoMik® BAS Instrument
x3 Slots for AtoMik® Instruments
+24V/+5V Power control of instruments
USB 2.0 Control to instruments
x2 USB 2.0 expansion
I2C/SPI interface expansion

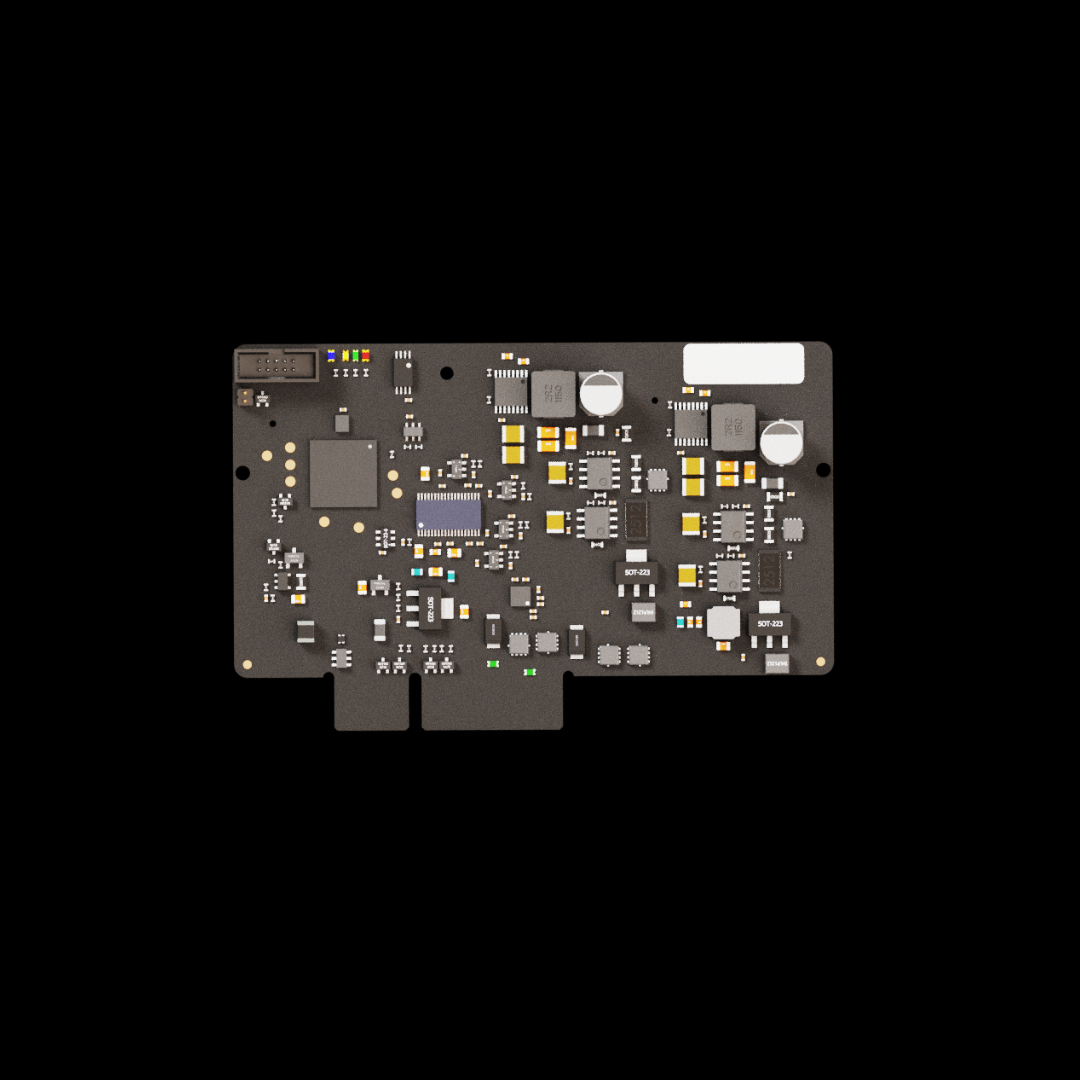

Source Measure Unit Instrument (SMU)
The SMU Instrument provides two high-precision software-controlled supply voltage channels with individual built-in software fuses.
Each channel offers configurable settings of slew rate and also remote sense voltage feedback with possibility to increase voltage accuracy. Current can be measured in 3 different ranges (mA, uA, nA) with high precision configured manual or in automatic mode. Different types of external expansion such as number of power supply channels is possible by utilizing the built-in expansion interface.
KEY FEATURES
USB Controlled
Power supply 0-15V, 0-2.5A
x2 Independent power channel Accurate current Measurement
Remote sense voltage feedback
Built-in soft fuse function
I2C/SPI expansion
Powered by +24V/+5V

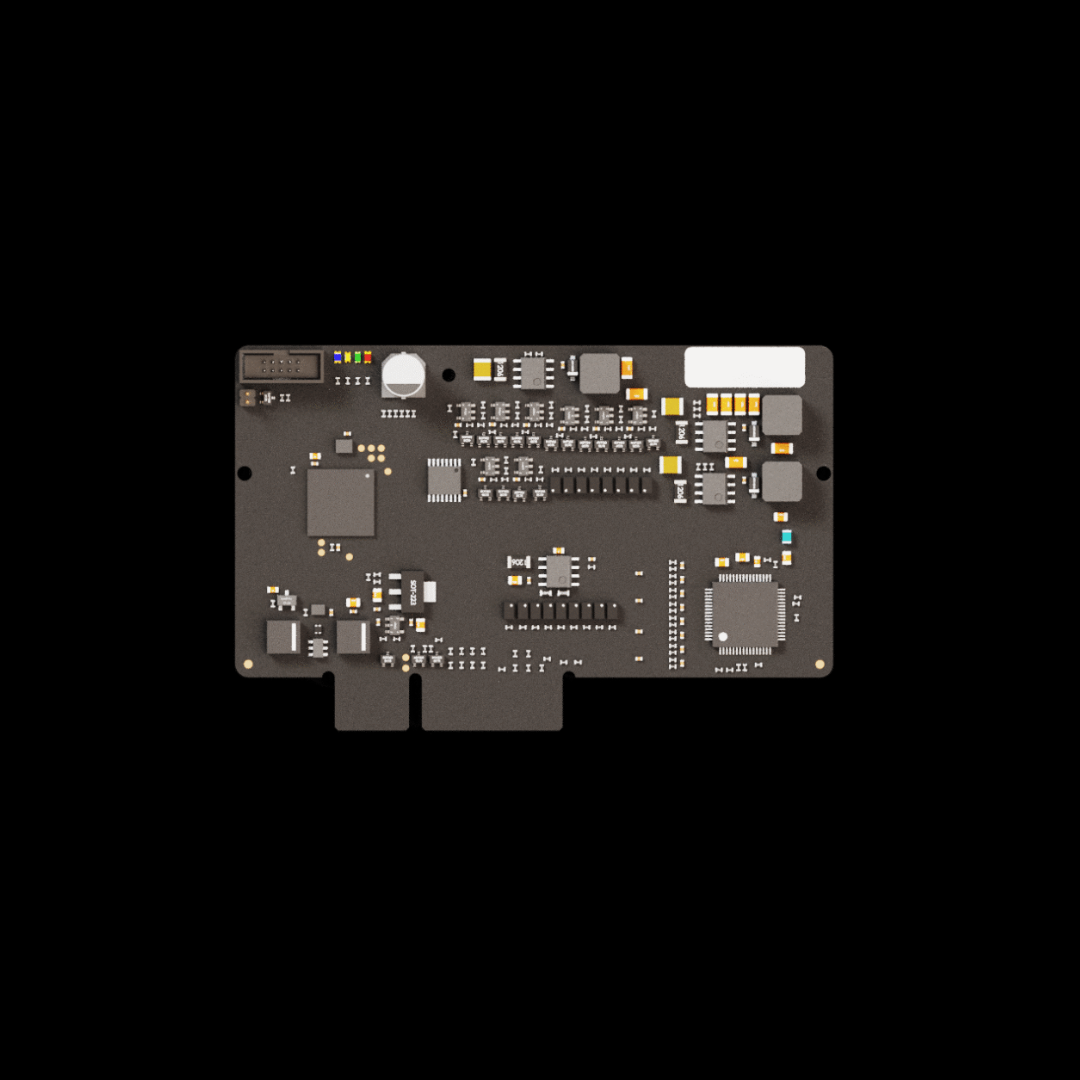

Data Acquisition Instrument (DAQ)
The DAQ Instrument provides high-precision data acquisition and converts real-world signals to the digital domain for display, storage, and analysis.
The instrument offers external connection to 16 single-ended analog input channels (AI) with a successive approximation ADC, two analog output channels (AO), 8 digital Push-Pull I/O channels (DIO). Each group of analog input channels AI0-7 and AO8-15 provides simultaneous sampling. All digital channels can be used as a counter. Different types of external expansion such as number of analog and digital channels are possible by utilizing the built-in expansion interface.
KEY FEATURES
USB Controlled
x16 Analog in, ±10V range
x2 Analog out, ±10V range
x8 Digital I/O, configurable logic levels
Frequency counter, 1 Hz – 50MHz-
Internal reference clock
+5V/±15V/I2C/SPI expansion
Powered by +24V/+5V
Separate Power enable and reset

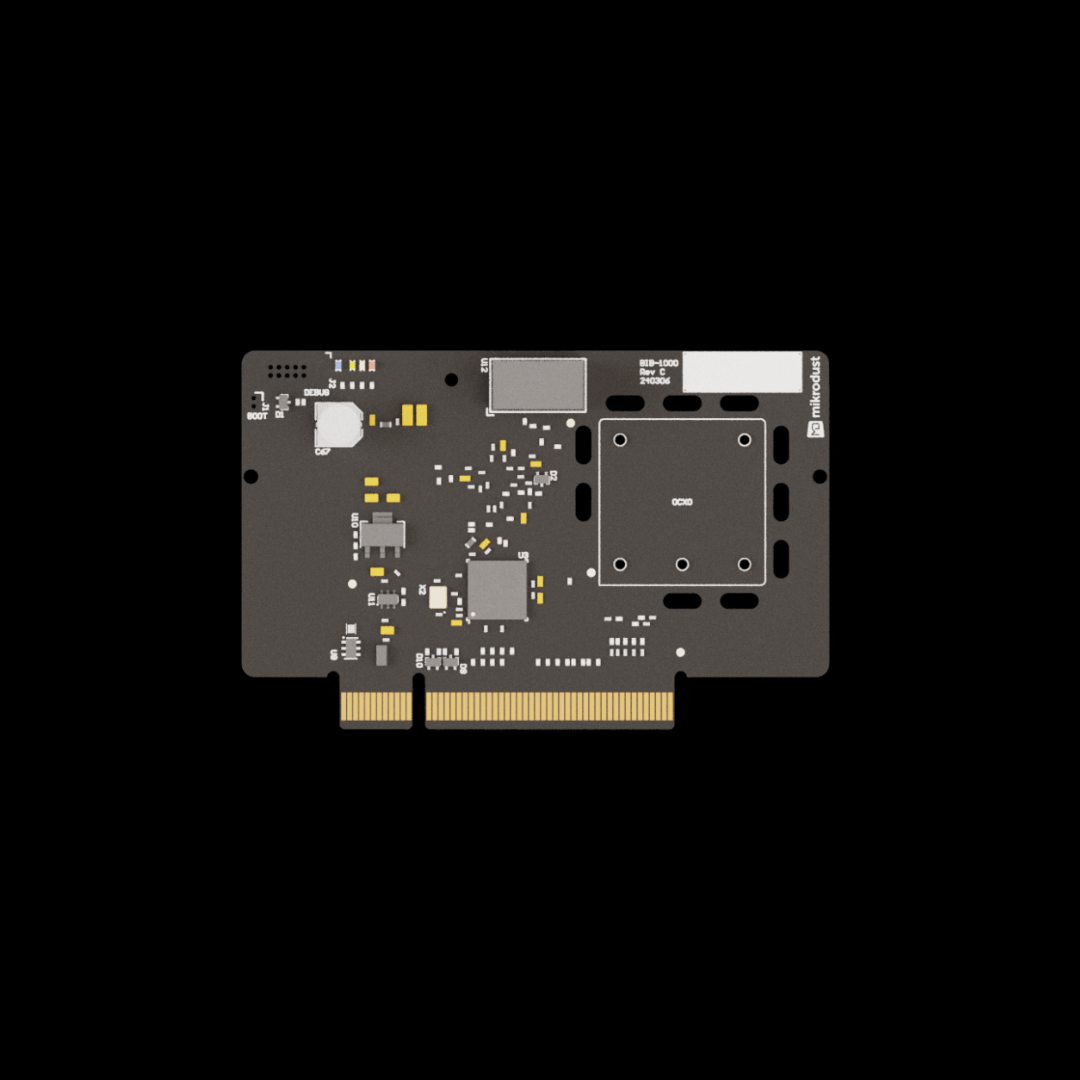

Base Control Instrument (BAS)
The BAS Instrument is the link between an external host computer and additional test instruments.
The instrument includes a USB hub to expand an incoming USB channel from an external host to an additional six test instruments. It also provides power enable and reset signals for up to six instruments. Various types of external expansion are possible through the built-in expansion interface.
KEY FEATURES
USB Controlled
x6 USB HUB expansion
x6 Instrument power enable signals
x6 Instrument reset signals
I2C/SPI expansion
Powered by +24V/+5V

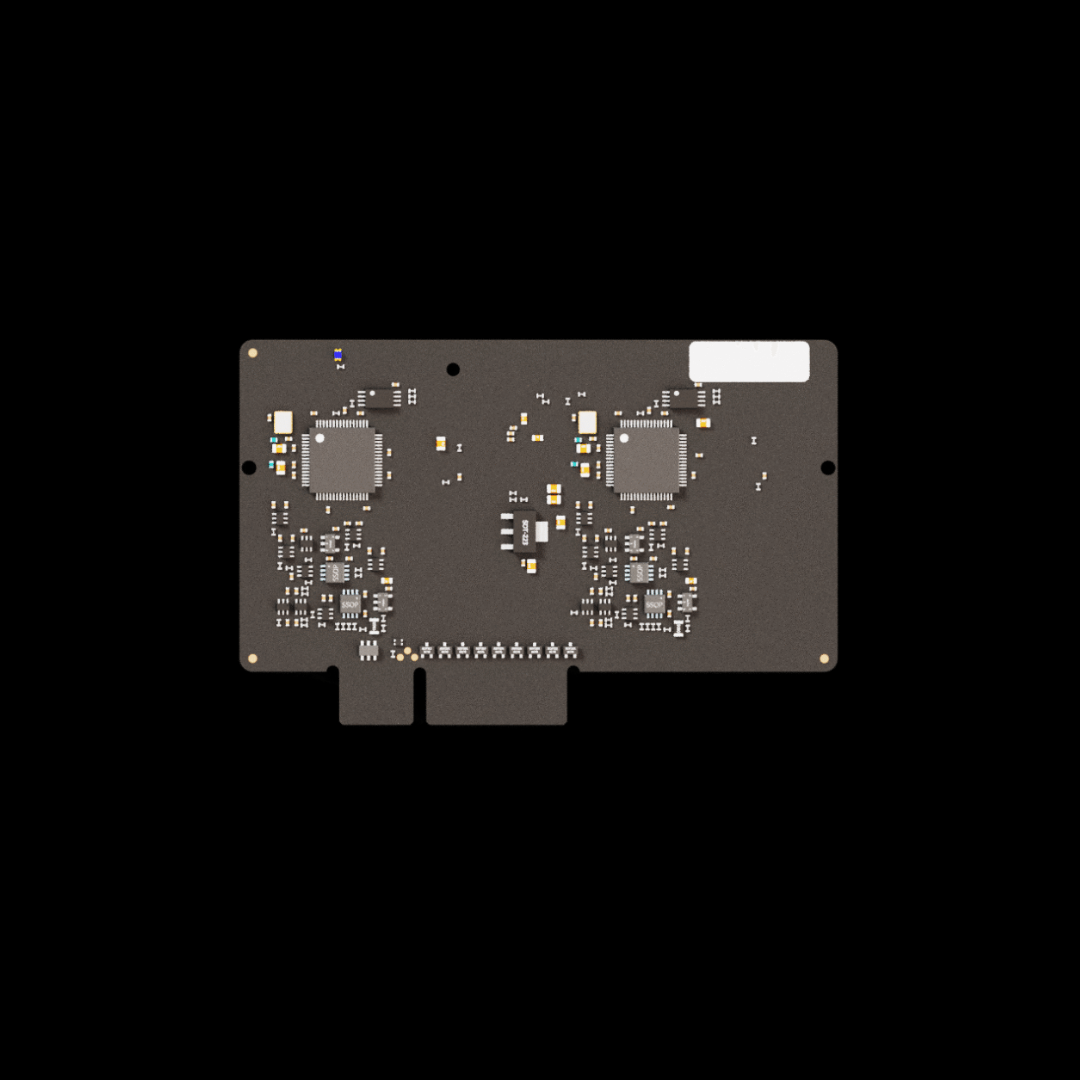

Programmer Instrument (PRG)
The PRG Instrument offers JTAG/SWD interfaces that act as bridges between the host and targets where the host communicate with targets utilizing the well-known open source OpenOCD software.
It implements a USB hub for expanding an incoming USB 2.0 channel to four USB 2.0 channels supporting four independent classic JTAG/SWD programming and debugging interfaces.
The PRG Instrument also contains four separate UART interfaces for e.g. communication with the test object from the host PC.
KEY FEATURES
x4 JTAG/SWD Programming & debugging interfaces
x4 UART interfaces
OpenOCD compatible
Powered by +24V/+5V

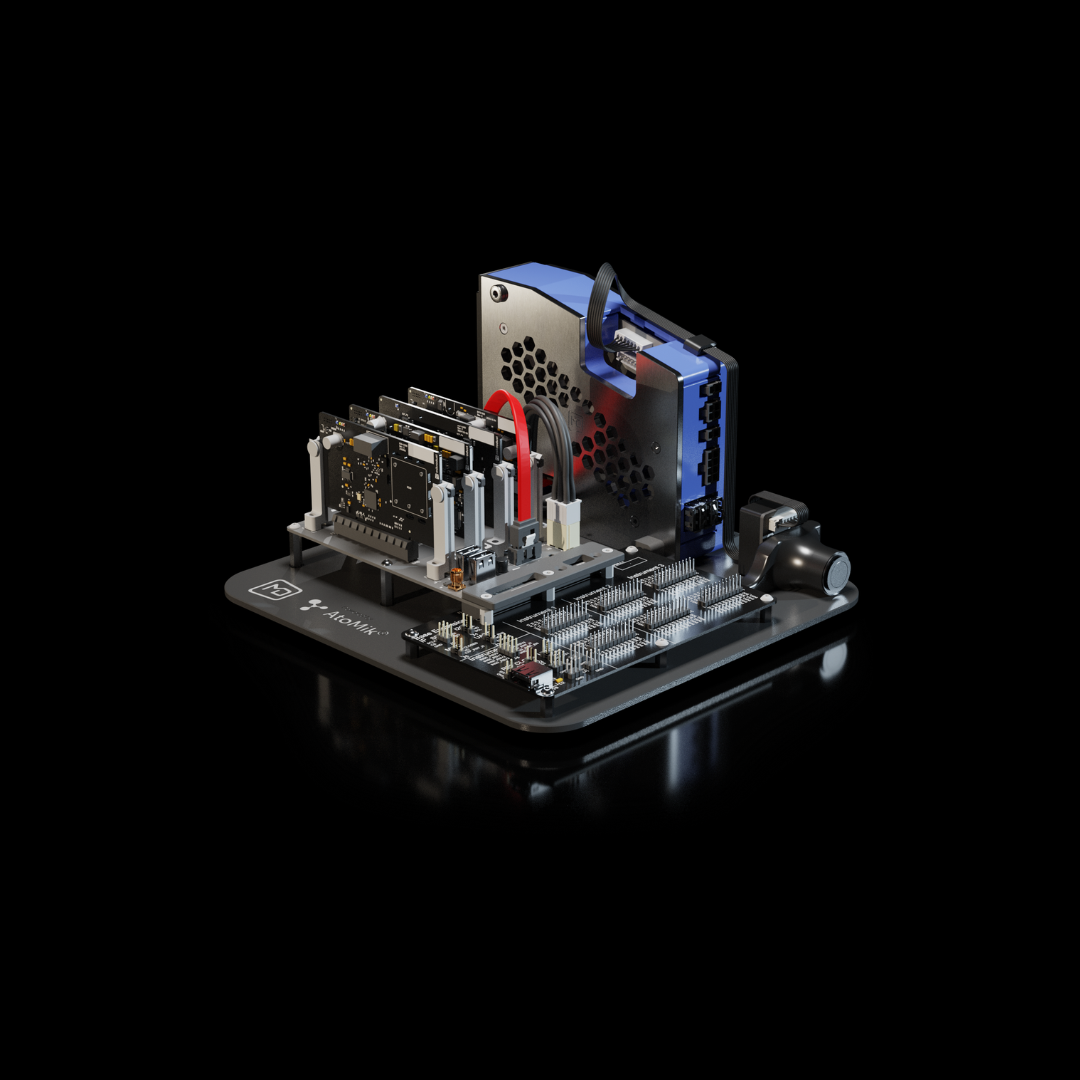

AtoMik® Dev Kit
The Dev Kit is a fully integrated development platform for R&D validation and test sequence development. It brings together all essential AtoMik® instruments, along with an RGB Button module, neatly organized on a single board.
A breakout board provides clearly labeled pin headers for each module, offering access to every functionality in the AtoMik® Ecosystem. The Dev Kit provides a modular instrument setup, ideal for test engineers wanting to evaluate the Atomik platform or develop test sequences.
KEY FEATURES
Includes IFM, SMU, PRG, DAQ, BAS, and RGB Button
Breakout board with pinout for all interfaces
Modular for use with different instrument configurations
Compact design for desktop use
